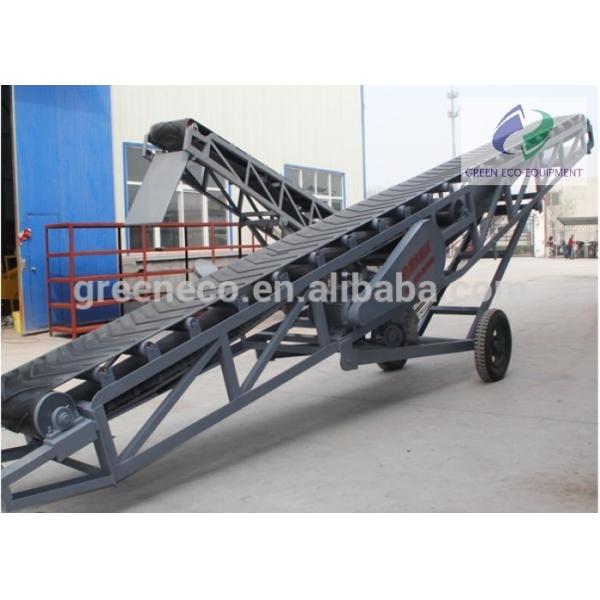

Inclined mobile belt conveyor to transport bulk materials in coal and chemical industry
Product Description
Mobile belt conveyor consists of two or more pulleys, with a continuous loop of material - the conveyor belt - that rotates about them. One or both of the pulleys are powered, moving the belt and the material on the belt forward.
Introductions of Mobile belt conveyor:
1. Carbon steel
2. Simple structure, easy maintenance
3. High standardization degree
Features
1.Simple structure and easy installation.
2.Low rate of breakdown and adapt to different use condition.
3.Various design form can meet different industries.
4.Cheap cost and long working life.
5.Easy move with special wheels.
Parameter sheet
| Model | Belt Width (mm) | Conveying Distance(m) | Belt Speed(m/s) | Lifting Height (m) | Slope Angle (º) | Capacity (m3/h) |
| DY50 | 500 | 5-20 | 0.8-1.6 | Adjustable | 10-26 | 50-140 |
| DY65 | 650 | 5-20 | 100-250 |
| DY80 | 800 | 5-20 | 170-350 |
| DY100 | 1000 | 5-20 | 270-550 |
Any inquiry of high Incline conveyor belt for slant angle conveying bulk materials, please feel free to contact us.
| Inquiry list |
| Belt width | |
| Fabric type of carcass | |
| Number of ply | |
| Belt thickness (mm) | |
| Cover rubber grade (Mpa) | |
| Application of belt | |
| Material to be transported | |
| Quantity needed (m) | |
Packing & Shipping
1.We can deliver Factory price mobile sand belt conveyor timely .
2.Standard sea shipping packaging.
Application
The mobile belt conveyor widely used in mining,gravel field, metallurgy, building materials,chemical industry,mineral processing,coal mining and other industries.It can convey bulk material like coal,cement,sand,cereal etc.And can convey lump material,such as rock,also it can convey 50kg bags.
